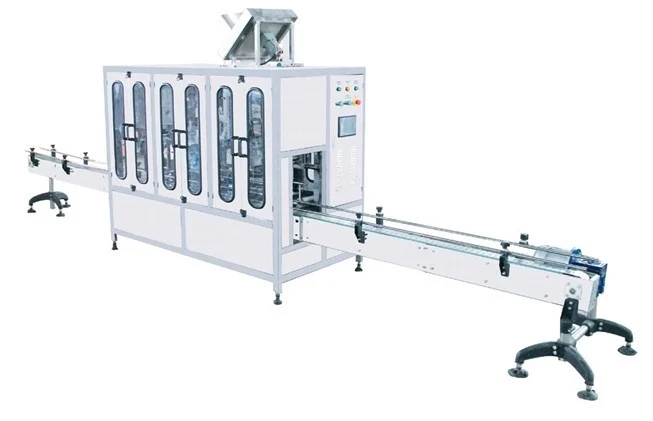

Linear Type Automatic 5L - 10L Bottle Water Filling Machine

FOB Reference Price:Get Latest Price
US $4,600-15,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Unit/Units per Month
Port:
Jiangmen
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50Hz three phase
Power:
2kw - 6kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Fountain Palm
Model Number:
bottle production line(300ml-2000ml bottle)
Dimension(L*W*H):
2200*1200*1900
Weight:
250kg - 600kg
Certification:
CE ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details
wooden case
Delivery Time
within 30-40 working days

Automatic Bottle Washing Filling Capping Machine for 5L-7L Bottle

1. Technical parameter:

1)Capacity:100 - 1000 B/H (5L)

2)Used air:0.3M3/min

3)Used water for washing bottles(max for 500BPH):0.25 T/H.

4)Total capacity of motor(max for 500BPH):2.5Kw; 380V, 50Hz.

5)Overall dimension(mm):5000*950*1970(L*W*H: mm)



2. Structure:

1)  Conveyor

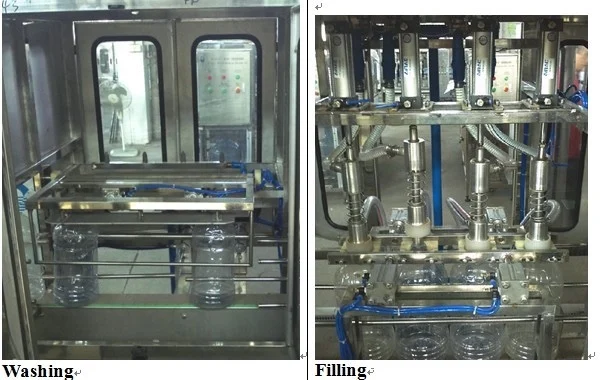

2)  Rinsing system

3)  Filling system

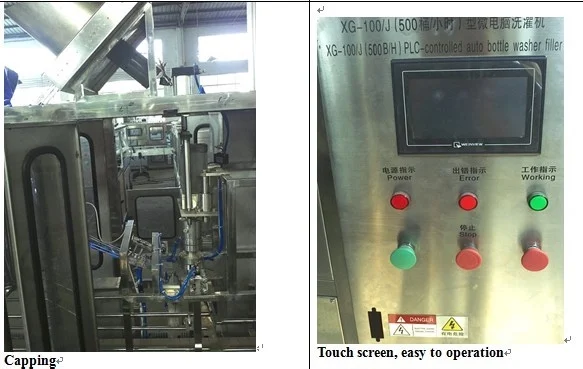

4)  Capping system

5)  Electrical control system.



3. Component list:



1) Touch screen: Taiwan Winview

2) PLC: LS

3) Proximity switch: OMRON;

4) Cylinder: AirTac.
