Quick Details

  • Condition: New
  • Application: Beverage
  • Packaging Type: Bottles,Cans,Hard Cartons
  • Packaging Material: Plastic
  • Automatic Grade: Automatic, Full-Auto
  • Driven Type: Electric, Electric
  • Power: 18KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Fountain Palm
  • Model Number: JMB
  • Packing Type: Bottles,Cans,Hard Cartons
  • Machine Raw Materical: Stainless Steel
  • Packing Film: PE/PVC/POF
  • Certification: ISO90001
  • Heat Type: Infrared ray
  • Automatic Control: PLC procedure control
  • Type: Packing Machine, Wrapping Machine

Packaging & Delivery

Packaging Details wooden case
Delivery Time within 25-35 working days after deposit

Specifications

Auto Shrink-Wrapping Packing Machine
1.for packing plastic bottle/glass bottle/cans/beverage
2.meet filling line
3.PE packing

Specifications for Automatic shrink film packaging machine

1) The technical parameters:

Model:JMB-250A

Packing material maximum size: L600 × W400 × H350mm

Shrink film material: PE/  PVC / POF

Shrink film thickness :0.03-0 .15 mm

Thermal furnace maximum temperature: 160 – 260°C arbitrary regulation

The maximum capacity: 6-12 packages per minutes

Equipment power: 18Kw

The actual power: 15Kw / h

 Power Requirements: 380/220V

Weight: 1.2T

Fan: 0.75Kw 380V 2 units; 65W 220V  4 units.



2) The equipment basic configuration:

7 inches touch screen, PLC control system AIRAC pneumatic component (1 set)

THINGET frequency converter (1 set)

Stainless steel wing type heating tube (12 pcs)

Teflon conveyor belt

Motor and worm transmission

Korea Autonics photoelectric switch, proximity switch.

Heat sealing knife cast aluminum heating board, temperature uniformity, long life, the company special made to order.

whole appearance of the spray, the frame adopts high-quality carbon steel, stainless steel body parts.

Length of bottle conveying machine: 2500mm

wooden and Stretch Film packaging separately.



3) The product description:  Frequency converter adjusts speed , two-grade conveying bottle device.

Pushing the bottle, the heating, sealing and cutting entire operation adopts pneumatic mechanism.

Sensor switch control film length.

Touch screen, PLC control system has greatly increased the reliability of equipment operation. ouble Wind air circulation fan is to ensure the temperature balanced in shrinking area.

Large air flow cooling system is to ensure rapid stereotypes.   High temperature Teflon fiberglass conveyor belt, transmission smooth, high strength wearesistant. requency conversion stepless timing belt conveyor. Conveyor height can be made according to user requirements, adjustment range ± 100mm

Conveying bottle machine meets the direction which the users required, may be extended or shortened

Wing-shaped stainless iron heating system is durable.



4) Technical conditions and requirements:

1 Packing form :

(1) 350/500/550/600ML-- Big packing: 4 × 6, 4 × 5 ,  Small packing : 3 × 4, 3 × 5 four types of packing.



(2) 1L/1.5L/2L/2.5L-- Big packing: 3 × 3, 3 × 4 ,  small packing:  2 × 2, 2 × 3  four types of packing.

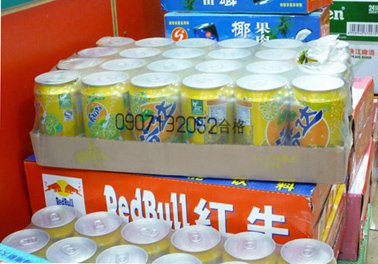

2 Aimed at Easy Can is best way to adopt packaging with tray and after packaging is stable.

3 Packing speed :6-12 packages / min.



4 To meet the filling machine speed.

(1) 350/500/550/600ML--Big package: 4 × 6, 4 × 5, (12000-15000 bottles / hour),    Small package: 3 × 5, 3× 4, (8000-10000 bottles / hour).

(2) 1L/1.5L/2L--Big package: 3 × 4, 3 × 3 (5000-6000 bottles / hour),    Small package: 2 × 3, 2 × 2 (3000-4000 bottles / hour).

5 packaging materials: PE shrink film width (200-600mm), thickness (0.08-0.12mm)



Standard functions: (three parts)

1, Automatic transmission organizations; butt filling machine conveyor belt, two levels, or a transmission, the drive control, speed adjustable, can be automatic bottle.

2, Automatic envelope sealing body to complete the set automatically by the packaging film and sealing functions.

3, Automatic thermal cooling mechanism; can automatically after the completion of mantle contraction and cooling.



Remark:

Total weight: about 1.2T

packing size(MM):shrink machine size: 3500*1000*1800,

Cut film part  : 1100*1100*1960,

Conveyor part : 2600*800*750.







III.Output with feeding tray or not
