Specifications
Shrink-Wrapping Packing Machine
1.For bottles,easy cans,beverage,glass jar
2.Using PE film
3.Output:<3000bph
4.Operate easy
----JMB-80A Easy type
1) Functions and features:
a.Functions

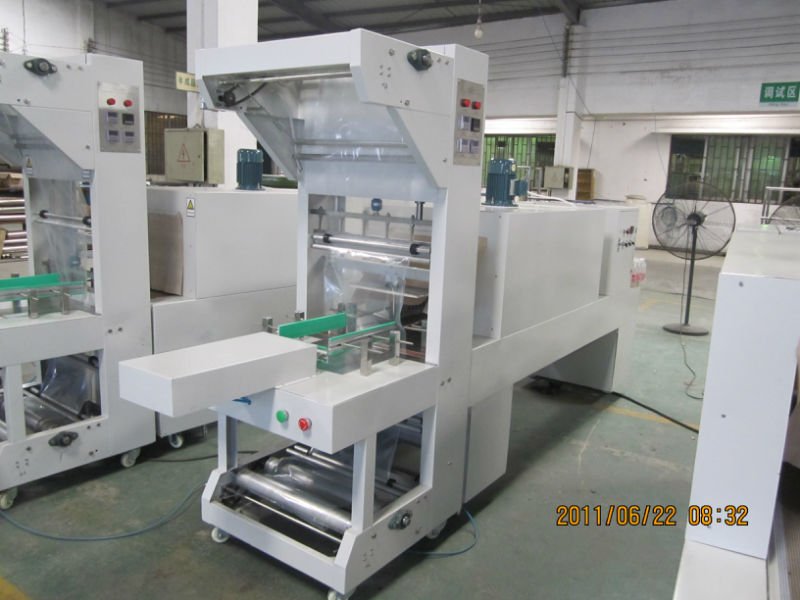

- JMB-80A Semi-automatic Thermal Shrinkage Film Wrapping Package Machine is a new type of packing machine which combine merits of both domestic and oversea similar machinery. It packs the PET bottles or other similar goods with the factions of film covering automatic, package cooling and finished product, has the features of tied firmly, looks neat, attractive and easy to open. So it is widely used in food, medicine, chemical and light industry package.
- b.Features
- Automatically sent to film sealing and cutting, and the film feeding amount can be changed based on needs
- Automatic temperature control and change based on needs
- Teflon mesh belt or scroll bar conveyor
- Package: perfect what ever it is without pallet or with pallet and suitable for all kinds of bottles shape and numbers of bottles packing.
- Stainless steel fin-shaped iron heating pipe, heating uniformity, indefectible, replace easy.
- Simple operation, convenient maintenance
2) Working principle and process
JMB-80A Semi-automatic heat shrinkable packaging machine adopts automatic covering film into packets, pushes and moves on the conveyor mesh belt though the shrinking stove heating contraction and the cooling type, and then put into shelves.
1, automatic covering film:
The packaging will be placed in covering film work platform by artificially, pressing two operating buttons at the same time. So the pushing bottles of institutions will forward along the guide bottles of agency along with stenciled arrived sealing and cutting position film. At this time the film feeding institutions also work together. Then hot sealing and cutting knife will be downward to complete sealing and cutting.
2, heating contraction:

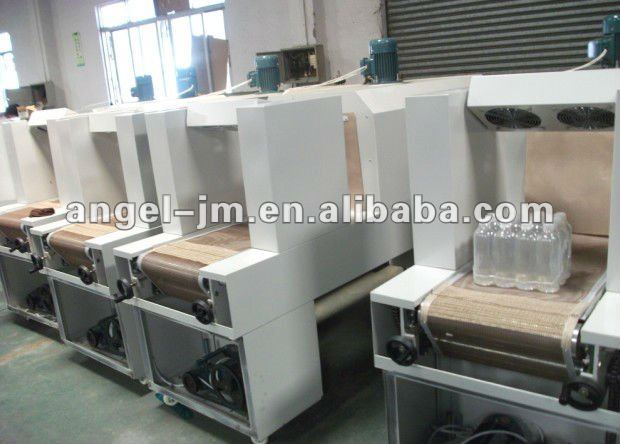

Shrinking stove is responsible for heating a bag packaging to be contractive; making film conformably shrink under high temperature, wrapping packaging surface tightly to make sure the quality of packing. It makes use of the heating tube which is on either side of the box body to heat, and then through the top of the circulation fan. It leads to the high temperature and hot air directly to blow surface of film, to make its heated contraction. Shrinking temperature is in 180°C-250°C.
3, cooling type
The cooling type is responsible for quickly cooling the filling which is through the heating contraction. It is for making the films into high strength state and moving easily.
3) Technical Parameter of equipment
1. Electrical source: AC 380V/220V 50HZ
2. Maximum power: 15KW
3. Working air pressure: 0.6 MPa
5. Thermal shrinkage film: PE/PP/ PVC /POF

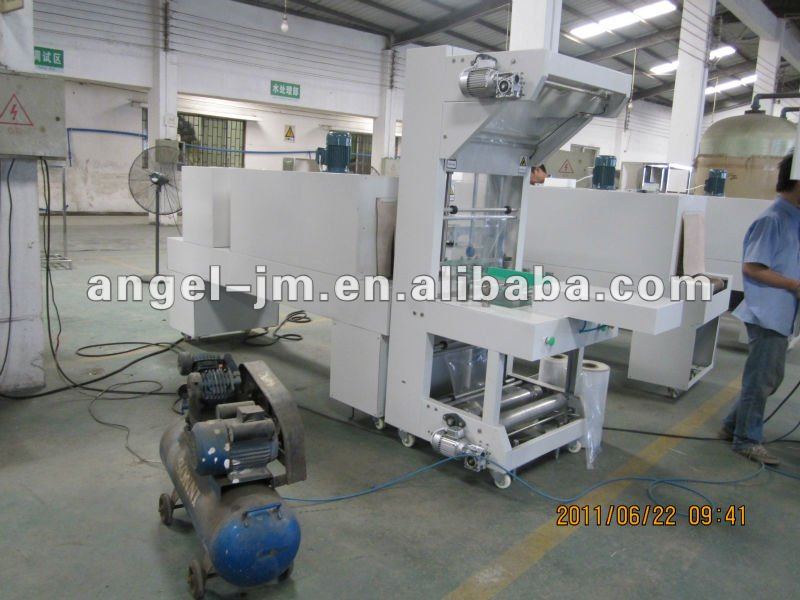

6.Auxiliary compressor requirement: exhaust pressure( 0.8 Mpa ), rate of flow: 0.25 m3 / min
7. Width of wrapping film:≤600mm
8. Thickness of wrapping film: 0.03-0.15mm
9. Outlook dimension of equipment: 4750×920×2100(mm)
10.Cutting and sealing temperature: 180°- 220°(adjustable)
11.Shrinking temperature: 180°C- 250°C(adjustable)
12.Overall weight: 800Kg
4) Product packaging and technical parameters
Max packing size (mm): 600 × 400 × 350 (big bottles diameter for 450 × 300 × 400 )
Sealing knife length: 700mm
Shrinkage temperature :160-250 °C
Contraction time :0-6S
Heat sealing and cutting temperature :160-200 °C
Production rate :4-8 packages
Number of common bottles per pack (round or square)
4 rows 4 × 6 4 × 5 4 × 4 Bottle diameter: 40-73mm
3 rows 3 × 4 3 × 3 3 × 5 Bottle diameter: 73-98mm
2 rows 2 × 3 2 × 4 Bottle diameter: 98-140mm
1 row 1 × 2 Bottle Diameter: 140-300mm
