6000L/H RO Water Purification System
Introduction
This is the RO system for producing drinking water. The producing capacity is 6000L/H. The system apply advance PLC control system to achive full automatic run for the process of pure water production, flushing and back washing. The main frame of the machine is made or high quality 304 stainless steel, and the electric elements is from famous internation brand, the key component ro membrane is America DOW FILMTEC to ensure that the system is reliable and with high efficiency.
Technical process
Raw water→ Raw water tank→ Raw water pump→ Sand filter→ Active carbon filter→ Security filter→ high pressure pump→ RO component→ Pure water tank →UV/Ozone→ Pure Water
Main Components List:
Basic Configuration | Item | Description | Remark |
Pretreatment part | Feed pump | CNP CDL8-40 | Good quality brand in China |
Sand filter | Φ900×1800 (filter 1100kg) | FRP | |
Active Carbon filter | Φ900×1800 (filter 350kg) | FRP | |
Micron filter | dia 330 x 500mm x 1.5mm (40" X 7 micron filter) | SS304 | |
RO Part | Pressure pump | CNP CDL8-190 |
|
RO membrane | FILMTEC BW30-365 x 6pcs |
| |
Membrane vessel | 8"x 2m FRP VESSEL 3 SETS |
| |
Indicators | TDS,PH and Conductivity indicator |
| |
Piping and controlling valve | Piping and valves | U-PVC piping & Valves |
|
Control system & Indicator | PLC system, Water level control, Pump protecting ,Automatic electric valve control |
| |
Other fittings of machine | Pressure gage | 1.0MPa,2.5Mpa. 5pcs in total |
|
Conductivity of the table | CM230 X 2sets |
| |
Main frame | Stainless steel 1set |
| |
motorized valve | DN40 |
| |
Pipeline flow meter | 20GMP 2sets |
|

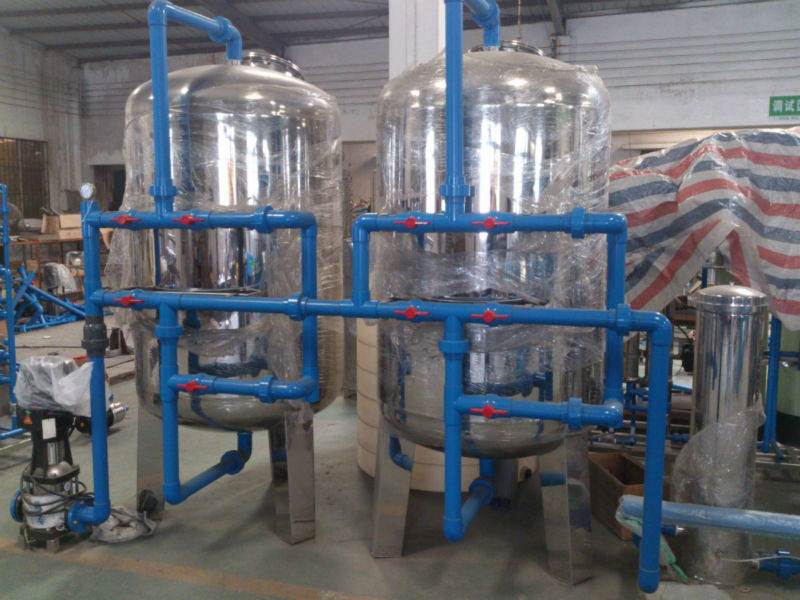

Pictures:
